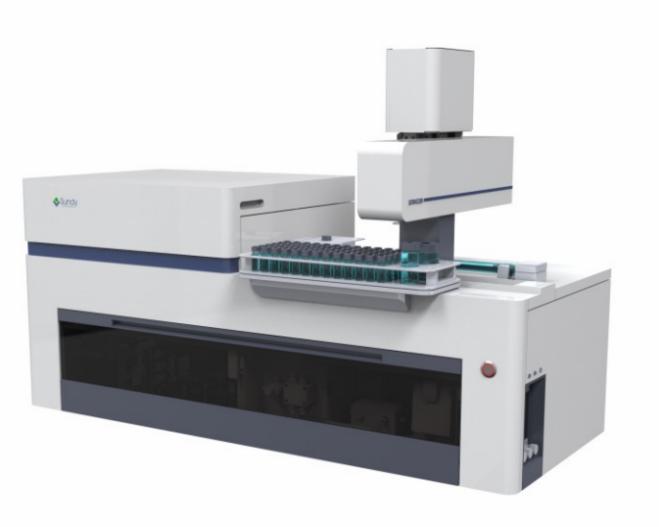

SDXNS200 Combustion Ion Chromatography System

Application

This combustion ion chromatography system is highly versatile and well-suited for the accurate determination of fluorine, chlorine, bromine, iodine, and sulfur contents in solid, liquid, and gas samples.



Environmental: water, soil, paper

Plastics: degradable material, polymers(PP PE), rubber, plastic waste

Electronics: printed circuit boards, cables, insulating material, soldering material, OLED

Petrochemicals: crude oil, diesel, gasoline, catalysts

Mining: copper concentrate, iron ore, coal

Textiles: fabric, paints, waterproofing agent, auxiliaries, pigments

Foods: oils, spices, flavorings, fragrances...

Product description

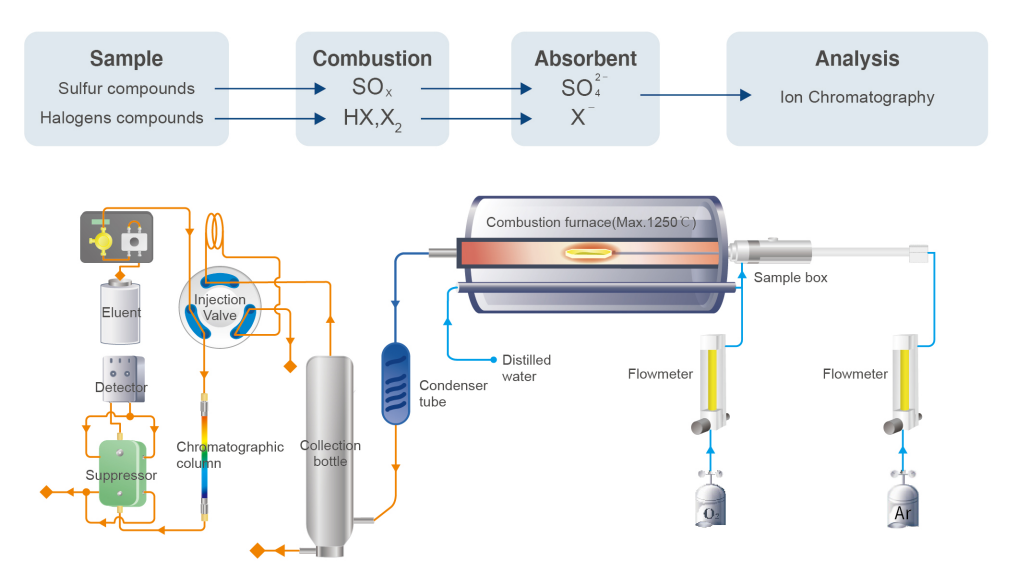

Ø Working Principle

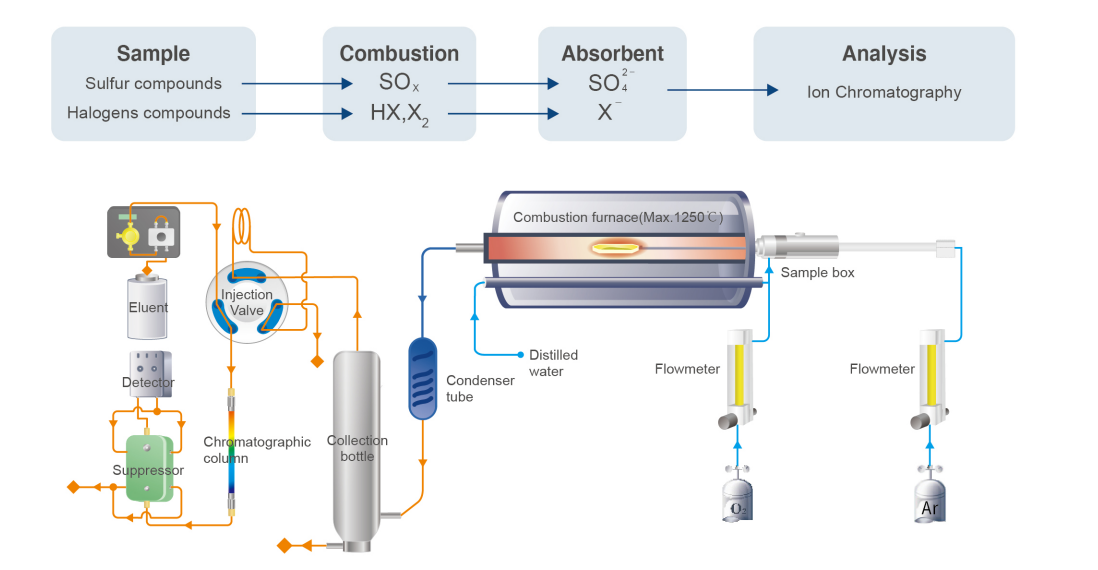

The samples are combusted with oxygen and water vapor in the combustion furnace unit, and the resulting gaseous compounds are absorbed by the absorption solution. The analytes dissolved in the absorption solution are then transferred to the ion chromatography system for determining the concentrations of halogens (fluoride, chloride, bromide, iodide) and sulfur.




Highlights

1.High automation

System preparation: With one-key activation, the combustion furnace automatically heats up, and the IC module starts automatically.

Sample introduction: Place the sample in the autosampler, input the required sample information and analytical method. The system will then automatically perform combustion pyrolysis according to the preset program.

Analysis: The sample solution is automatically made up to volume and injected into the IC module, with the flow path automatically cleaned. Automatic dilution is optional for high-concentration samples.

Results are automatically calculated, and blank values are automatically deducted.

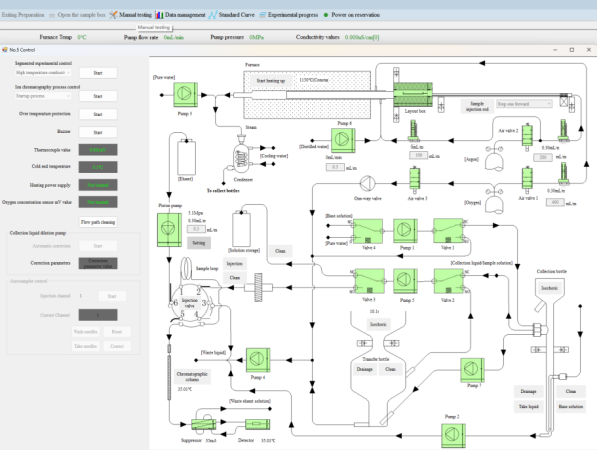

Fault Handling: The system automatically prompts for faults and provides troubleshooting methods. Individual components can be tested separately via the manual detection interface.





2.Wide sample compatibility

Supports solid, liquid, and gas samples.

Pyrolysis atmospheres can be selected according to specific needs, including oxygen, air, argon, nitrogen, and water vapor.

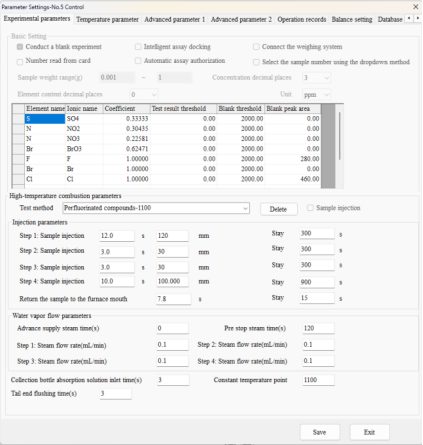

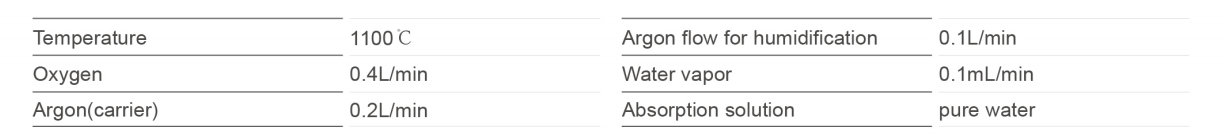

Fully configurable combustion-pyrolysis parameters, including sample introduction time, sample introduction distance, retention time, and water vapor flow rate.





3.High efficiency

①Simultaneous sulfur and halogens determination, with automatic data calculation and direct LIMS upload minimizes manual errors.

②Calibration curves for various concentration ranges can be prepared to reduce repetitive testing.



4.Wide measuring range, low quantitation limit

Based on a 50mg sample, the limit of quantitation (LOQ) up to 0.2 mg/kg(200ppb). Theoretically, the maximum concentration can be up to 100%.

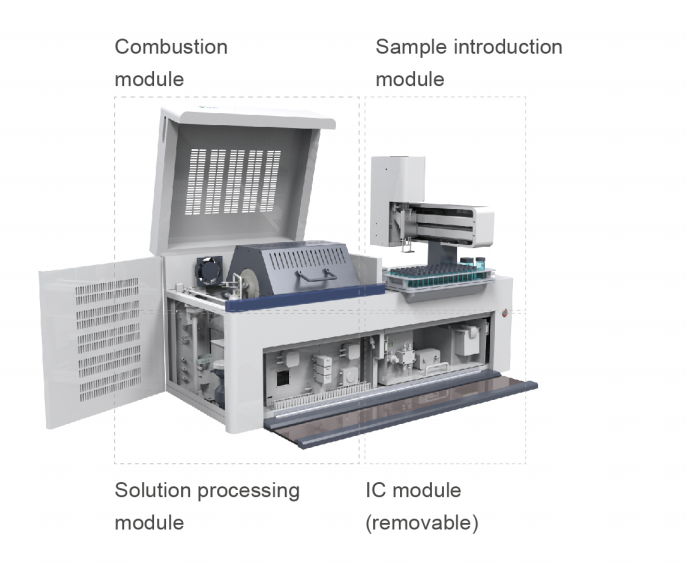

5.Easy maintenance and disassembly

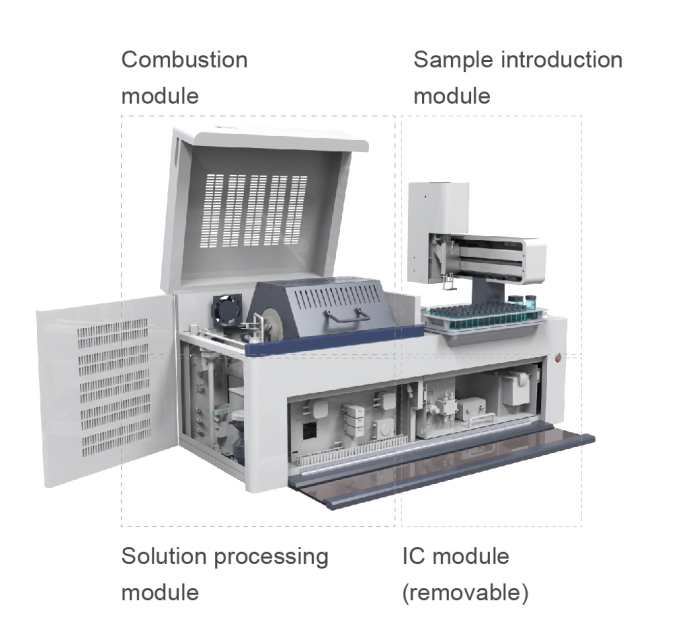

Modular design enables easy replacement of combustion tubes, sampling rods, and chromatographic columns.

Sundy C-IC system can be used independently as a combustion-pyrolysis furnace or an ion chromatography.





Specification:

Element measured:

F, Cl, Br, I, S

Sample:

 Solid, Liquid, Gas

Sample mass:

0-100mg (solid) or 0-100µL (liquid)

Autosampler:

49 (solid) or 78 (liquid)

Furnace temperature:

Max.1250℃

Measuring range:

≥0.2ppm

Analysis time:

 <15min

Temperature precision:

 ±5℃

Constant temperature zone:

14cm

Gas:

oxygen, argon

Standard

ASTM D2847 ,ASTM D7359 ,IEC 60754-3,IEC 62321-3-2,GB/T 39560.302,GB/T 42276,GB/T 41067 ,GB/T 43352 ,GB/T 18006.3 ,GB/T 41008 ,GB/T 42908,GB/T 41533,GB/T  39951,GB/T 34845,GB/T 22904,GB/T 40111
