Application:
SDIS450 can be used to determine the sulfur content in coal, coke, ash, biomass fuels and other combustibles in the fields of power plants, coal mines, petrochemical, paper & steel factory etc.
Highlights：
High Automation, high test efficiency.
①Analysis time / sample is＜2 minutes. Samples can be placed in process of test.
②50 autoloader design, high automation, no need attendance in the whole process. Manual sample introduction is also available.
③Patented technology of combustion gas curtain effectively ensures thorough combustion of sample and no emission of gas. Safe and environmental friendly.
④Filter wool can be replaced automatically, no damage to combustion tube and furnace.
⑤Easy and convenient for gas leakage check, operators only need to click on the software.
Humanization Design with stable performance.

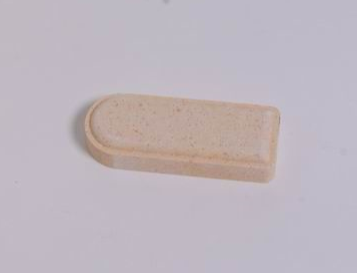

①Tailored boat shaped crucible can be placed at random.
②Automatic identification of crucibles by locator card, no need coding in advance.
High Precision.
①Specially designed high temperature combustion tube with secondary combustion function, makes sure the samples combust thoroughly.
②Self-developed ultra low drift infrared cell guarantees that only one drift in a working day is enough for accurate test.
Intelligent control.
①Easy to use Windows-based software: It only needs to click the mouse after weighing and placing the samples.
②Easy data handling, real time data can be transmitted by internal network.
③With Ethernet bus communication technology, one PC controls several analyzers.
④Capable of connecting with network and balance by RS232 interface.
Specifications:
| Description | SDIS450 |
| Test Method | Infrared Absorption |
| Sulfur Determination Range | 0.01% – 50%(can be extended to 100%) |
| Standards | ISO 29541,ISO 609,ISO 19579 ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016, ASTM D5373,GB/T 25214, GB/T 28732, AS 1038.6.3.3, BS 1016 |
| Sulfur Resolution | 0.001% |
| Analysis Time/sample | ＜ 2 min |
| Preheating Time | ≤150min |
| Max. Quantity of sample | 50 |
| Sample Weight | 80 – 500mg(100mg Recommended) |
| Furnace Temp | 1250℃ – 1350℃ |
| Heating Elements | Silicon Carbide |
| Temp. Control Precision | ±1℃ |
| Temperature Sensor | Thermocouple |
| Power Requirement | AC 220V(-15% ~ 10%)50/60Hz |
| Max. Power | 4.5kW |
| Gas Requirement | 99.5% purity oxygen≥1MPa |
| Gas pressure | Oxygen（0.28±0.01）MPa Total Air Flow≥1MPa |
| Sample Introduction and Discarding | Automatic |
| Gas Flow Checking | Rotor flow meter adopted Gas flow by visual check |
| Chemical Reagents | Dehydrite |
| Humidity | ≤85% |
| Ambient Temperature | （15~30）℃ |
| Operational Control | Windows®-based software on external PC |
| Operation Cost | Oxygen consumption lowered by intelligent gas supplying system.Desiccant: Dehydrite which is of higher cost |
| Dimensions | 890*670*650mm |
| Weight | 135kg |
| Advance Calculation | Yes |
| Analysis Report | Yes |
| Statistics Report | Yes |
| System Monitor | Yes |
